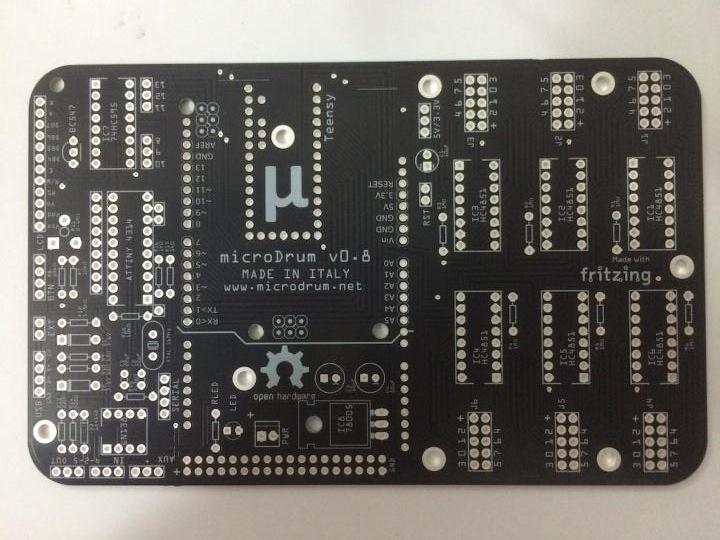

Unlike the v0.7, the mainboard v0.8 is a double layer PCB.
Be aware that there are 2 silkscreen errors on it:
- The BC547 transistor must be welded reversed (EBC -> CBE).
- The ATTINY4314 is a 4313 instead.
![[mainboard-v0-8-top.jpg]](pcb_v0.8/mainboard-v0-8-top.jpg)
There are some new components on it:
-
The ATtiny4313 together with the 16 MHz crystal are used for the USB MIDI output.
-
The IC7 SN74HC595 is used to have more LCD controls.
-
The IC8 TL780-05 voltage regulator.
There is a Teensy 3.1/3.2 support but it was not tested.

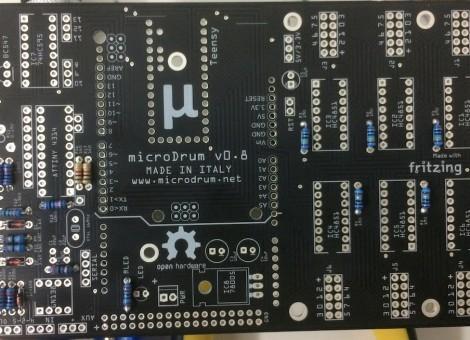

Step 1 - Resistors and diodes
![[mainboard-v0-8-step1.jpg]](pcb_v0.8/mainboard-v0-8-step1.jpg)

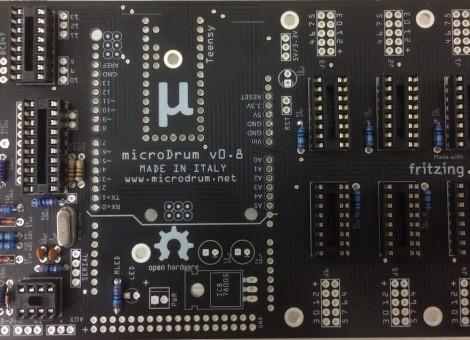

Step 2 - IC Sockets, Crystal and Ceramic Capacitors
![[mainboard-v0-8-step2.jpg]](pcb_v0.8/mainboard-v0-8-step2.jpg)

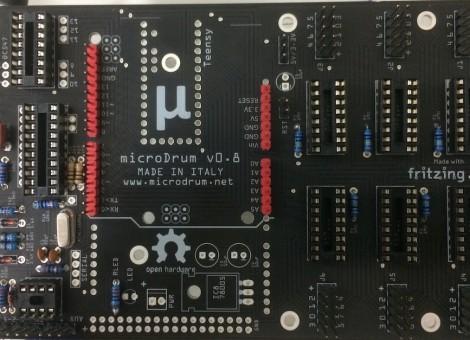

Step 3 - Pin Strip Headers
![[mainboard-v0-8-step3.jpg]](pcb_v0.8/mainboard-v0-8-step3.jpg)

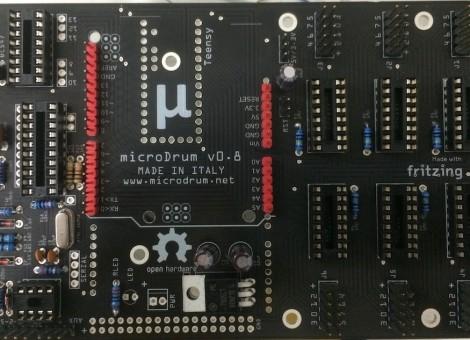

Step 4 - 78005 Voltage Regulator and 10µF Electrolytic Capacitors
![[mainboard-v0-8-step4.jpg]](pcb_v0.8/mainboard-v0-8-step4.jpg)
